GAS CUTTING EQUIPMENT, REGULATORS & ACCESSORIES
Plony Industries is the authorized distributor for Messer Oxyfuel cutting equipment and accessories. At Plony, we work together with the end users to find the perfect solution for their application in the field of oxyfuel technology. Together with our Messer principal, we can assist our customers with gas cutting site safety audit checks and carry out training, demo sessions to the end users. We seek to provide not only equipment to our customers but comprehensive oxyfuel cutting solutions that can help meet their needs for productivity and reliability.
​
Plony Industries is also the authorized dealer for Spectron gas regulators and gas control systems. Spectron specialize in the manufacturing of gas regulators for high purity, high flow rate and corrosive gas applications. At Plony, our technical specialist will work with end users to understand their requirements to provide a customized solution for their applications.
Messer Gas Regulators
Typhoon Cylinder Pressure Regulator
- Oxygen Regulator
- Acetylene Regulator
- Left Hand Entry, BSP Thread (Singapore Common Standard)
- Inlet Pressure 230 Bar
- Outlet Pressure 10 Bar
Tornado Cylinder Pressure Argon Regulator
- Left Hand Entry, BSP Thread (Singapore Common Standard)
- Inlet Pressure 230 Bar
- Max Flow Rate 30 l/min
Tornado Cylinder Pressure CO2 Regulator
- Carbon Dioxide Gas
- Electrically Heated 230V, 50/60Hz
- Left Hand Entry, BSP Thread
- Inlet Pressure 100 Bar
- Max Flow Rate 30 l/min
Tornado Cylinder Pressure Nitrogen Regulator
- N2 Regulator
- Left /Right Hand Entry, BSP Thread
- Inlet Pressure 230 Bar
- Outlet Pressure 10 Bar
Other Industrial Gas Regulators Available
- 2 Stage Constant Pressure Regulators
- Constant Flow Regulators
- Customized Fittings Regulators
Messer Cutting Torch & Nozzles
Proficut Series L8707B/A PMY Hand Gas Cutting Torch
- For Gas-Mixing (3-Seat) Cutting Nozzles, Cutting Capacity up to 200mm
- Torch Length 460mm and Weight 900g
- 100% Tested Before Dispatch from Factory
- Large Cross-Sectional Area for High Gas Flow
- Adjustable Gland Packed Gas Valves Allow Precise and Accurate Control
​
Acetylene Fuel Gas Cutting Nozzle
ANME 6-20mm, ANME 20-75mm, ANME 75-125mm
​
Propane Fuel Gas Cutting Nozzle
PNME 6-20mm, PNME 20-75mm
Messer Flashback Arrestor (Safety Device)
DGN Flashback Arrestor
(Cylinder Regulator End)
- 3/8" BSP Thread
Oxygen Gas
- 25 Bar Max Operating Pressure
- 33 m³/h Flow Rate
Fuel Gas
- 5.0 Bar Max Operating Pressure
- 4 m³/h Flow Rate
GG Flashback Arrestor
(Cutting Torch End)
- 3/8" BSP Thread
Oxygen Gas
- 20 Bar Max Operating Pressure
Fuel Gas
- 5.0 Bar Max Operating Pressure

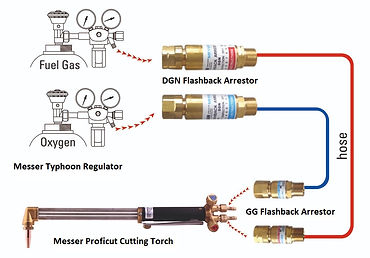

Messer Oxy-Fuel Cutting Torch Setup
The diagram is a complete gas cutting equipment setup. Messer offers full solution for gas cutting applications, starting from the gas regulator, to the flashback arrestor and to the gas cutting torch.
​
​Our technical engineer will review and advise the suitable equipment to be used for the oxyfuel application to ensure the required gas flow rate and pressure can be achieved and providing optimal cutting performance at the same time.
Messer Heating Torch Sets
Starlet Heating Torch Setup
Multi Purpose 1302MB Torch Handle
- 3/8" BSP Thread
- Can be used with various attachments for different cutting, welding, brazing and heating applications
Starlet F-PMYE Mixing Tube & Nozzle
- Laminar Flame Outlet
- Nozzle Size 8, 10, 12
Airtherm Heating Torch
- For Propane (Single Fuel Gas)
- Airtherm 2002 Torch Handle
- Torch Neck Length 600mm
- Various Heating Nozzle Size for Different Flame Capacity
Messer Gas Cutting Devices
StableCut (Manual)
- Straight Cut Mechanical Guide
- Strong magnets fix variable guide rails firmly to workpiece
- Variable guide rail lengths 38/61/91/122 cm
- Bevel cuts up to 60°, One-hand operation
- Controlled cutting speed by toothed rack guide for precise cuts
- Two torch holders: Ø 27mm torch head and for gas-mixing nozzles
PortaCut (Automated)
- Portable automatic gas cutting machine
- Different attachments available for straight, circle, bevel & multi-bevel cuts
- Two gas torches option
- Clean and precise cut up to 300mm
- Reliable and compact motor
Spectron Gas Regulators and Gas Control Systems
High Purity Gas Regulators - Range from Grade 5 and Above
High Flow Gas Regulators - For high air flow rate gas applications (CNC Gas Regulators)
Corrosive Gas Regulators - Stainless steel regulators for corrosive gas applications
Pressure Control Panel - For automated switching of gas supply for continuous gas flow
​
